Rackmount 1U network appliance, hardware platform with 60W redundant power supply or single power supply Models infoIEC-514P-EX-010EIEC-514P-EX/PSU 60W/D525/6 Intel GbE with 2 Channels BYPASSIEC-514P-EX-030EIEC-514P-EX/PSU 60W/D525/ 6 Intel GbE without BYPASSIEC-514P-EXR-010EIEC-514P-EX/60W redundant PSU/D525/6 Intel GbE with 2 Channels BYPASSCPU Intel …
NSA-514PEX
In request quote, explain your details for your server and we build this.
* For more information: +32 2 853 08 37 or info@up-servers.com
| Chassis | |
| Color | Black |
| Front panel | Silver PVC |
| Construction | Heavy-Duty Steel Chassis |
| Dimensions | (D x W x H) 380x430x45 mm |
| Motherboard | |
| Platform | Intel Pineview-D Platform |
| CPU | Intel 45nm Atom Dual core D525 processor / 1.8GHz, 1MB L2 Cache |
| Chipset | Intel ICH8M |
| BIOS | SPI FLASH BIOS |
| System memory | One 204pin DDR3 SO-DIMM slot, Up to 4GB; Pre-install 2GB DDR3 ram |
| Storage | |
| Interface | Two SATA connectors, one SATA HDD power connector |
| Hard Drive | Supports one 3.5″ HDD bay |
| Compact Flash | One CF slot |
| Ethernet |
|

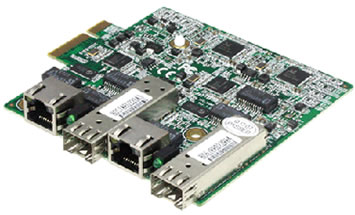

| LAN Port | Eight RJ-45 GbE ports, supports two channels BYPASS, Optional four Rj45 + four SFP or six Rj45 + 2 SFP |
| Ethernet Controller | Intel PCIe GbE controller |
| BYPASS | Supports two channels BYPASS, with BYPASS status LED indicate function |
| Indicator | RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED |
| External I/O | |
| USB | Two USB2.0 |
| COM | One RJ-45 COM port |
| Indicator | One Power LED, 1x HDD LED |
| Internal I/O |
|
| Video | One VGA interface, support hot plug |
| USB | Six USB2.0 Pin-header |
| Keyboard/Mouse | One PS/2 Keyboard and Mouse Pin-header |
| COM | One RS-232 pin-header, for LCM module |
| TPM | Optional TPM connector for TPM module |
| DIO | 16-bit Digital I/O (8-bit input/8-bit output) |
| WDT | Software programmable supports 1~255sec System reset |
| Expansions | One Mini PCI slo, One full-size Mini PCIe slot |
| Power supply | |
| Power consumption | 100W 1U power supply |
| Power input | 100 ~ 240VAC input |
| Environments | |
| Mounting | Supports rack-mounting or desktop-mounting |
| Operate Temperature | -10°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Operate Humidity | 5% ~ 90% non-condensing @ 40°C |
| Storage Humidity | 5% ~ 95% non-condensing |
| Shock | Half sine wave 3G; 11ms 3axis |
| Vibration | Meet MIL-STD-810F 514.5C-1 |
| Weight(Gross) | 4.5Kg |
